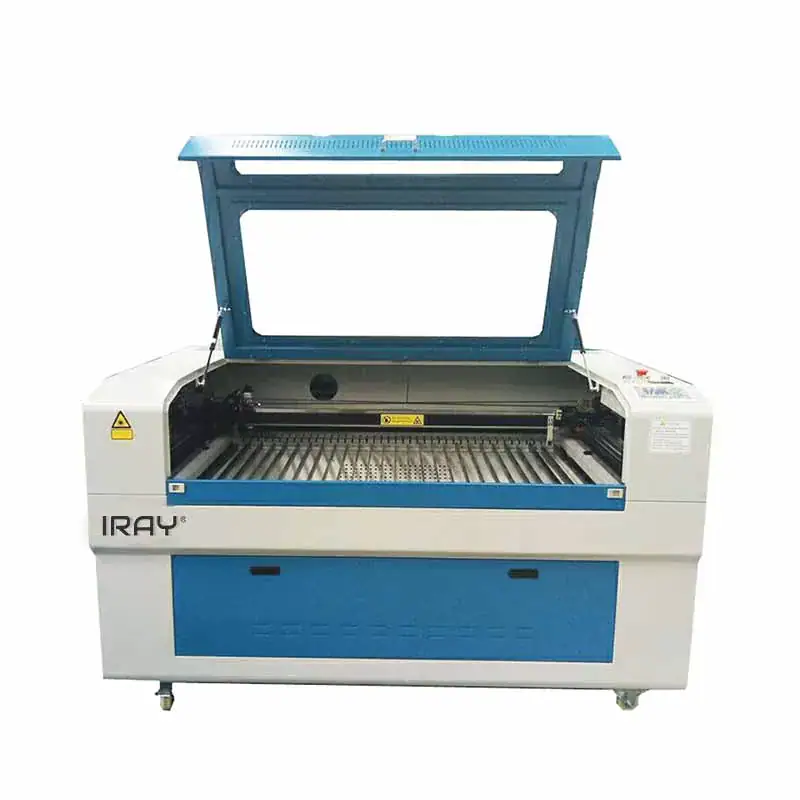

名前 IL-1390 Laser Cutting Machine
Working area 1300*900んん
Table Blade table/honeycomb table
Control system Ruida RDC6445G control system
ソフトウェア RDWorksV8 software
Laser power Reci W2(90w-100w),rated power 90w,Max.power 100w
Laser tube cooling Water cooling CW3000 water chiller
Lifetime of laser tube 10000 時間
Motors&drivers Leadshine stepper motors&stepper drivers
Transmission Hiwin linear square guide rail and Fulong belt
Engraving speed 0-1000mm/s
Cutting speed 0-700mm/s
Compatible software CorelDraw/AutoCAD
画像フォーマット PLT,DXF,BMP

CUTTING ABILITY OF DIFFERENT LASER POWER

ACRYLIC(んん) WOOD(んん) MDF(んん)
60w 8 5 4
80w/90w 12 8 7
100w 15 10 9
130w 20 15 13
150w 30 20 20



  • 製品詳細
  • 梱包と発送
  • よくある質問
  • 応用
  • 問い合わせ

レーザー切断機説明:

CO2 laser engraving machine is a type of computer numerical controlled nonmetal laser etching system that uses CO2 laser tube to output high-density laser beam for engraving & cutting. CO2 laser engravers are used for wood, fabric, leather, acrylic, plastic,plexiglass, paper, wool, rubber, crystal, ceramic tiles, jade, epoxy resin, bamboo, and more non-metallic materials. It is widely used in crafts making, advertising, decoration, clothing, leather, toys, electronic appliances, computer embroidery and cutting, models, packaging and printing, paper products, and more industries.

利点:

1. Automatic focus lens.
2. CO2 sealed laser tube including laser powers of 60 Watts, 80 Watts, 100 Watts, 130 Watts, 150 Watts.
3. Honey comb table or knife table for option.
4. Automatic up and down platform for option.
5. Profesional exhauster device and cooling device.
6. Transmit files directly in CorelDraw, AutoCAD, and more softwares.
7. The CO2 laser machine adopts international linear rail with high precision.
8. The CO2 laser machine owns functions of restoring from power off, continuation on break point.
配送:
海上輸送の経験豊富なフォワーダーと協力し、お客様の機械の安全を保証します. 電車での送迎も行っております, 特にロシアに対して, ウクライナおよびその他の内陸国.

Q: Are you a manufacturer or trading company?
あ:We are factory with professional production team and service consciousness just for
exporting various types of laser machine.
Q: Do you have after sales support?
あ: はい, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What’s your payment terms?
あ: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
あ: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
あ: はい, 私達はします. The core of our company culture is honesty and credit. Sunway is ALIBAB’s
Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
あ: いいえ, most of our machines are designed according to customers’ specifications, using
famous brand components.
Q: How to visit our company?
あ: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.

APPLICATION

Application materials Cut Enrgrave
Acrylic/plexiglass/PMMA/Perspex/Organic board/Double color plate

はい

はい
Wood/Plywood/Veneer/MDF/Balsa wood/Bamboo/Oak

はい

はい

Plastic/PP/PET/PC/PS/PES/PA/Plastic film/foil

はい

はい

Leather/PU/Shoe Materials/Synthetic leather/Genuine leather

はい

はい

Fabric/Cloth/Textile

はい

はい

Carpet/Mat/Rug/Wool felt

はい

はい

Paper/Cardboard/chipboard/Press board

はい

はい

Foam&Filter/Mats polyester(PES)/Polyethylene(PE) はい はい
Stone/Marble/Ceramic/Granite/Natural stone/Pebble stone/Slate はい
Rubber stamps/Natural rubber はい はい
Glass/Pressed glass/Float glass/Crystal glass/Mirror glass はい
