動作環境
Machine name IRAY backpack laser cleaning machine
Supply voltage Standard AC220V±10%, 50/60Hz power adapter (output DC48V)
Optional single battery, 100W continuous work 80-90min
Power consumption <600W
Working environment temperature 5℃~40℃
Working environment humidity ≤80%
Optical parameters
Average laser power ≥100W
Power instability <5%
Laser Working Mode Pulse
Pulse width 150-190ns
Maximum monopulse energy 1.7mJ
Power regulation range(%) 10-100( Gradient Adjustable)
Repeat frequency(kHz) 20-200(Gradient Adjustable)
Fiber length 1.5メートル
Cooling mode Air cooling
Cleaning Head Parameters
Scan range (length * width) 0mm~100 mm, continuously adjustable;

Biaxial supporting 9 scanning modes

Scanning speed マックス 10 m/s
Field mirror focal length(mm) 160mm( Optional 210mm/254mm/330mm/420mm)
Depth of focus について 5 んん
Mechanical parameters
Machine size(Length, width and height) About 213mm*123mm*339mm(Do not contain batteries)
About 213mm*168mm*339mm(Contain the battery)
Size after packing(Length, width and height) About 840*810*300mm
Machine Weight について 8.5 Kg(Do not contain batteries)
について 12 Kg(Contain the battery)
Weight after packing Carton packing About 18.9Kg(Do not contain batteries)

について 22.1 Kg(Contain the battery)

Export packing About 42.1Kg(Do not contain batteries)

について 45.3 Kg(Contain the battery)

Cleaning head weight (excluding optical head) <0.75Kg
Mode of operation Handheld/automated

  • 製品詳細
  • 梱包と発送
  • 問い合わせ

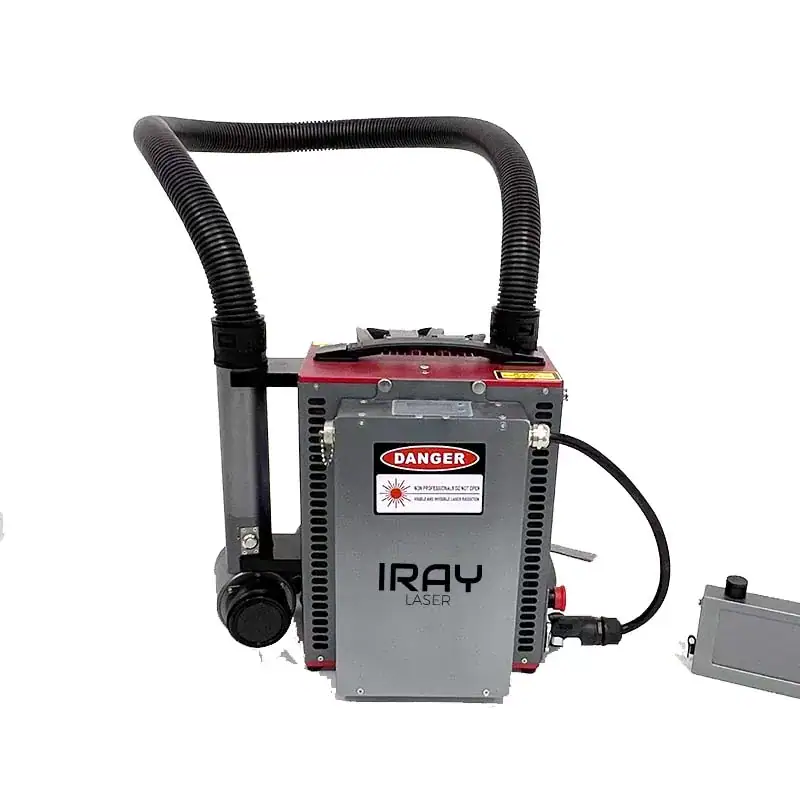

backpack laser cleaning machine

Machine advantages:

◎ Non-contact cleaning, does not damage the parts matrix;
◎ Precise cleaning, can achieve precise position, precise size selective cleaning;
◎ Does not need any chemical cleaning solution, no consumables, safe and environmental protection;
◎ Simple operation, can be hand-held or with the robot to achieve automatic cleaning;
◎ Ergonomic design, operation labor intensity is greatly reduced;
◎ High cleaning efficiency, saving time;
◎ Laser cleaning system is stable, almost no maintenance;
◎ Optional mobile battery module;

サンプル:

Packing:

1.The package is export stand polywood boxes , they are durable and safe.

2.Each wooden case will be filled to ensure that the goods will arrive in good condition.

配送:

1. Fast shipping. DHL, FedEX, UPS and other express shipping is available. Usually 3-10 days to arrive at door. 2. Economic shipping. Ship by sea to the nearest seaport is the most common way to deliver, the cost for delivery is usually within 300$, shipping time is 15-40 days.
